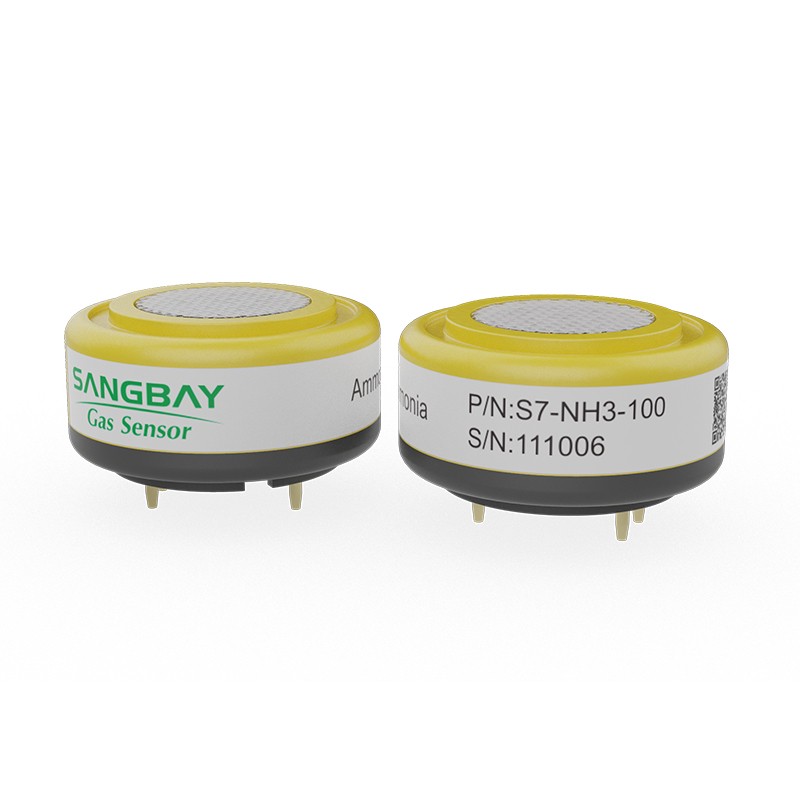

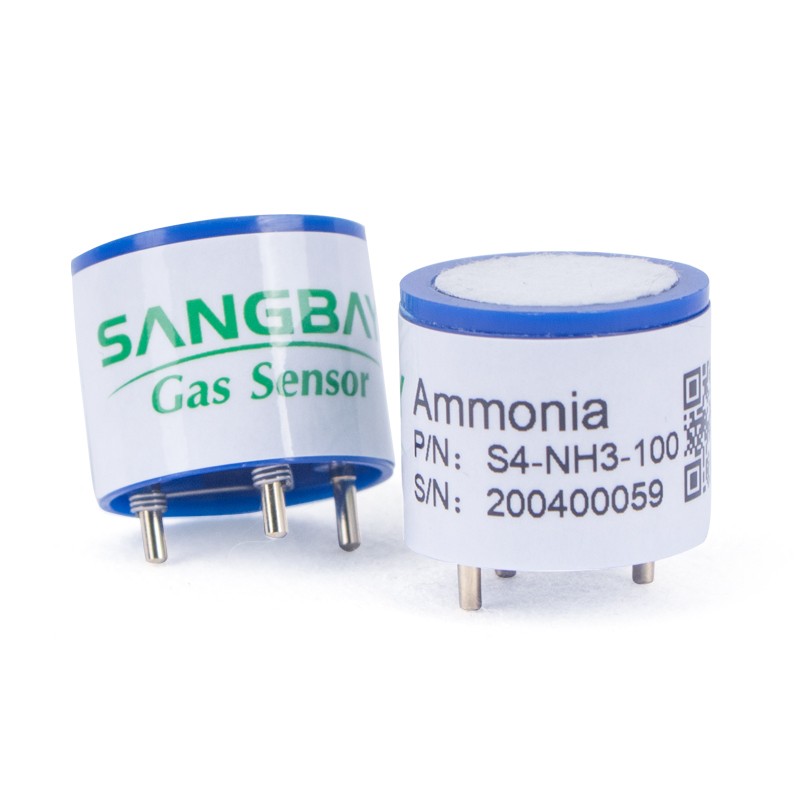

Ammonia Sensor
NH3 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
TAG:  Boseanammonia gas detectorammonia sensornh3 Sensor
Tel: 8615639095718
Email: info@bosean.com
Introduction
Tips:For more parameter information, please refer to the latest manual provided by salesman.
Item | Parameter |
Detection gas | NH3, ammonia gas sensor |
Measurement Range | 0~50ppm |
Max detecting concentration | 200ppm |
Sensitivity | (0.10±0.05)µA/ppm |
Resolution ratio | 0.5ppm |
Response time (T90) | ≦90S |
Bias voltage | 0mV |
Load resistance (recommend) | 10Ω |
Repeatability | <10%output value |
Stability (/month) | <10% |
Output Linearity | linear |
Zero drift (-20℃~40℃) | -3~10ppm |
Storage temperature | -20℃~50℃ |
Storage Humidity | 15%~90%RH |
Pressure range (kPa) | 90-110 |
Anticipated using life | 2 years |
