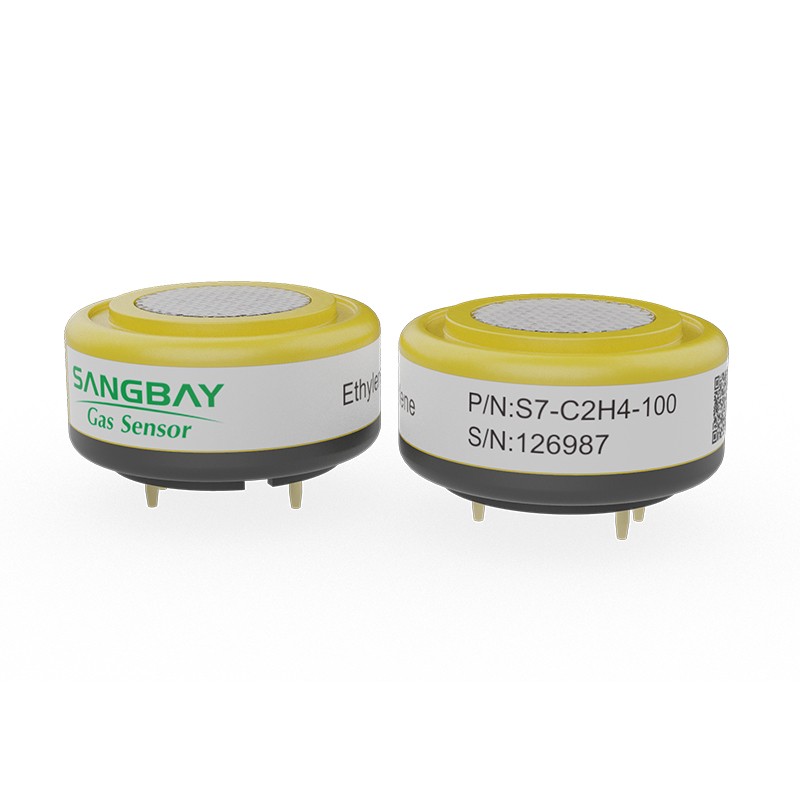

C2H4 Gas Sensor
C2H4 electrochemical gas sensor make use of electrochemical oxidation process on the working electrode in electrolytic cell. And the current produced in electrochemical reaction is in direct proportion to concentration while following Faraday law. So that concentration of target gas can be tested by current.
TAG: Boseanc2h4 gas sensorc2h4 gas detector
Tel: 8615639095718
Email: info@bosean.com
Detecting ethylene in industry and environmental protection field.
|
Model |
C2H4 |
|
Detection gas |
C2H4, ethylene sensor |
|
Detection range |
0-100ppm |
|
Max. range |
200ppm |
|
Sensitivity |
0.04±0.012 uA/ppm |
|
Filter |
Filtering SOX/NOX and H2S |
|
Resolution |
0.5ppm |
|
Tem. range |
-20°C-50°C |
|
Pressure range |
standard atmosphere ±10% |
|
Response time(T90) |
＜30S |
|
Humidity range |
15%—90%RH |
|
Bias voltage |
no |
|
Reproducibility |
1% of signal output |
|
output |
Linearity output |
|
Anticipated using life |
3 years in air |
Tips:For more parameter information, please refer to the latest manual provided by salesman.
