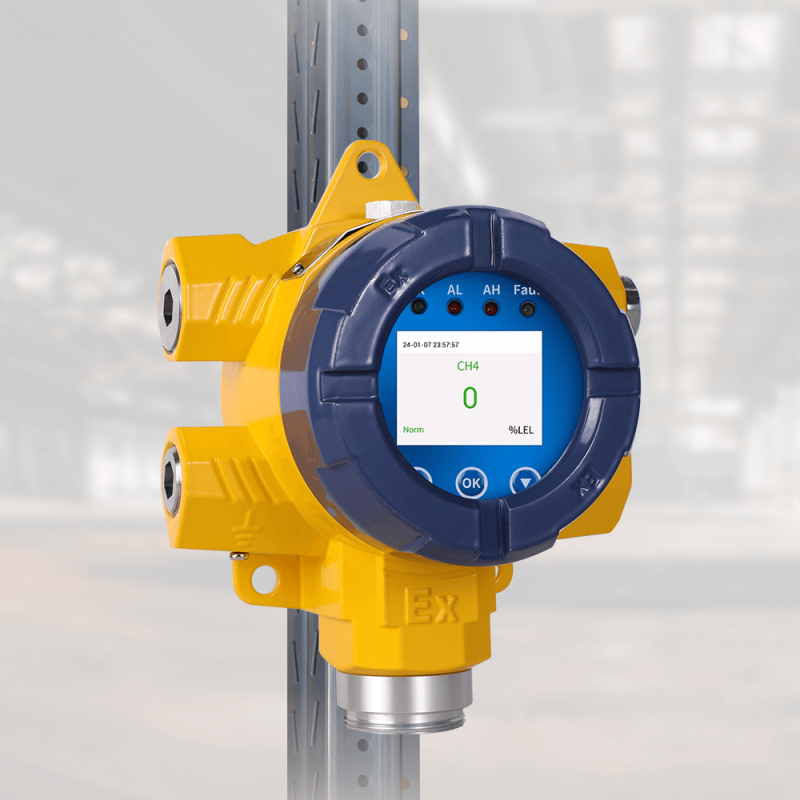

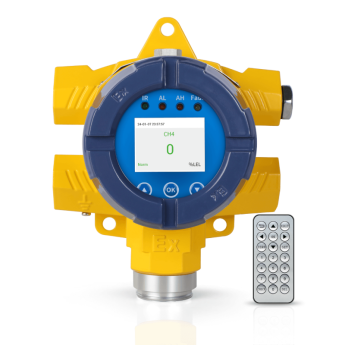

GTYQ-Z60 Fixed Gas Detector

1、High Sensitivity and Long Life: The GTYQ-Z60 is equipped with advanced sensors that provide high sensitivity for detecting even low concentrations of gas. Its durable design ensures long-term use, reducing the need for frequent replacements.
2、Low Drift and Reliable Performance: Engineered to minimize drift, this gas detector maintains accuracy and stability, making it a dependable choice for continuous monitoring.
3、Self-Check of Sensor Fault: Built-in self-check functionality allows the GTYQ-Z60 to automatically detect sensor faults,ensuring continuous, reliable operation without unexpected downtime.
4、LED Display: The easy-to-read LED display provides clear and immediate information on gas levels, ensuring prompt response and decision-making in critical situations.
5、Temperature Compensation: Featuring temperature compensation, the GTYQ-Z60 maintains its accuracy across varying environmental conditions, ensuring reliable readings no matter the climate.

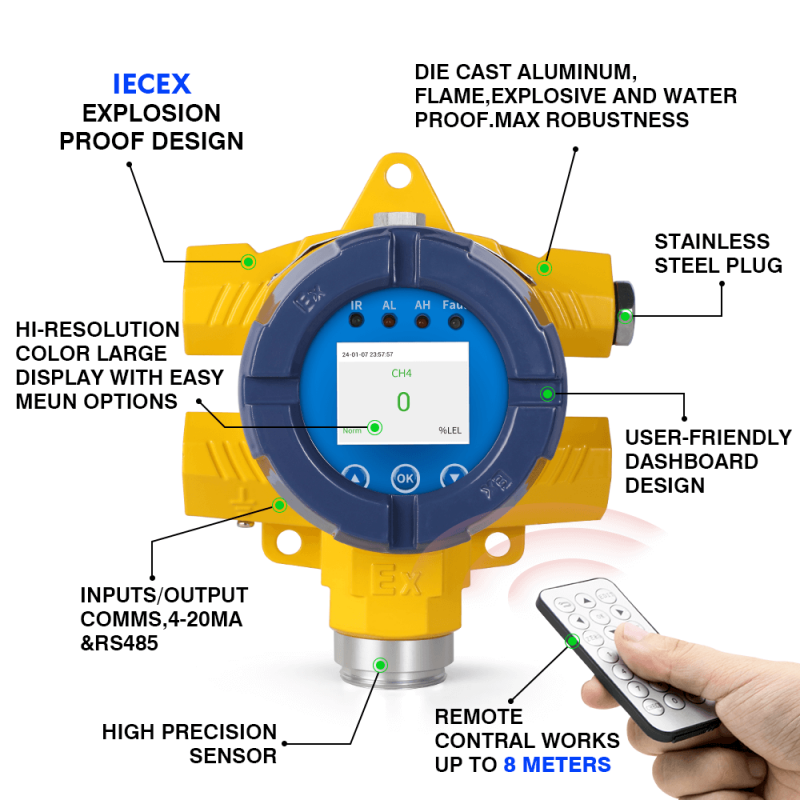

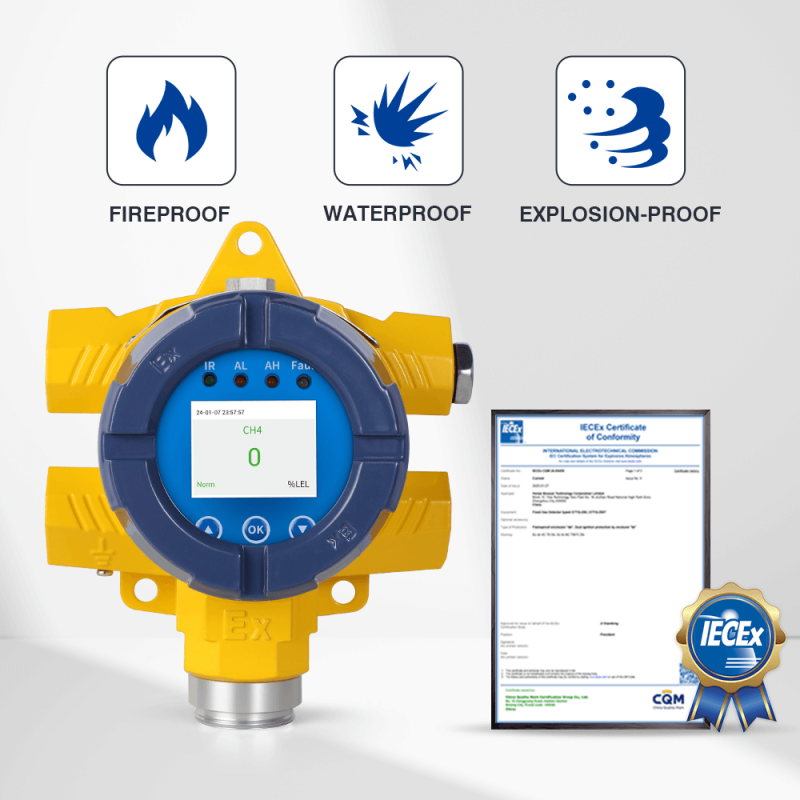

6、Explosion Proof Design: Designed with safety in mind, the Z60 boasts an explosion-proof housing, making it suitable for use in hazardous locations.

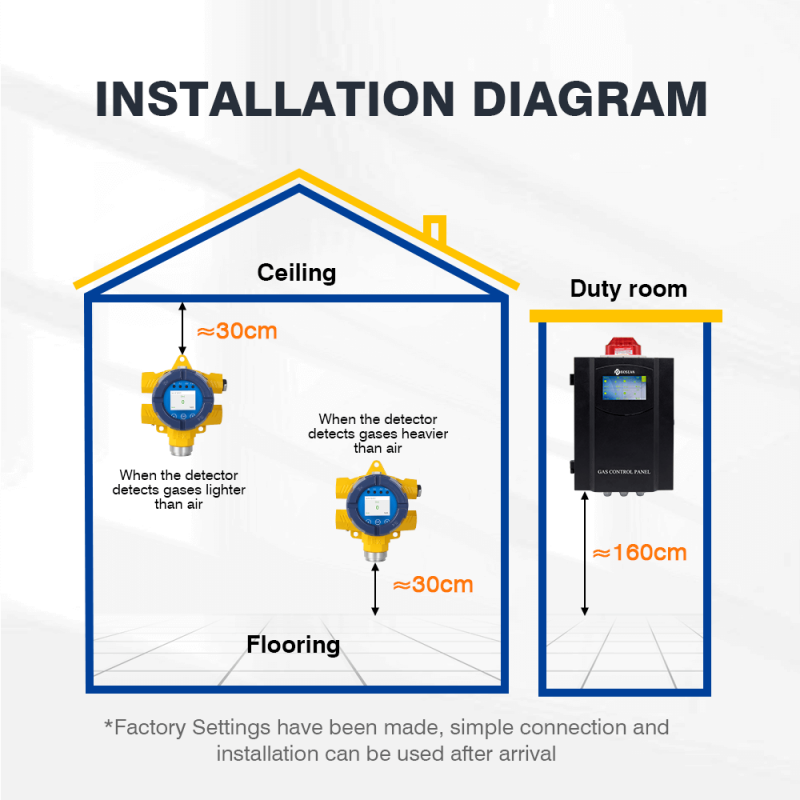

7、Easy to Install: With a user-friendly design, installation is straightforward, saving time and reducing installation costs.

Target Gas:CombustibleGases and Toxice Gases
Sample Manner:Natural Diffusion
Sensor Type:Catalytic Gas Sensor For Combustible Gas Electrochemical Gas Sensor For Toxic Gas
Unit:%LEL. ppm, %VOL
Load resistance:(4-20)mA≤250Ω
Protection class:IP66
Accuracy:F.S.±5%
Repeatability:F.S.±3%
Response Time:≦30s
Working Voltage:36V±6VDC
Load resistance:(4-20)mA≤250Ω
Working pressure:36~106Kpa
Working environment: Combustible Gas:Tem.:-40C~70°C
Toxic Gas: Tem.:-20C ~50C
Power Consumption:≤2W
Transmit Distance:≤1000m
Pressure:86kPa~106kPa
Gas Sensor Life:2 years
Explosion-proof grade:Ex db IIC T6
Cable:≥RVVP0.75 mm2×2
Install Screw Thread:G3/4
Dimensions:181*154*93cm
