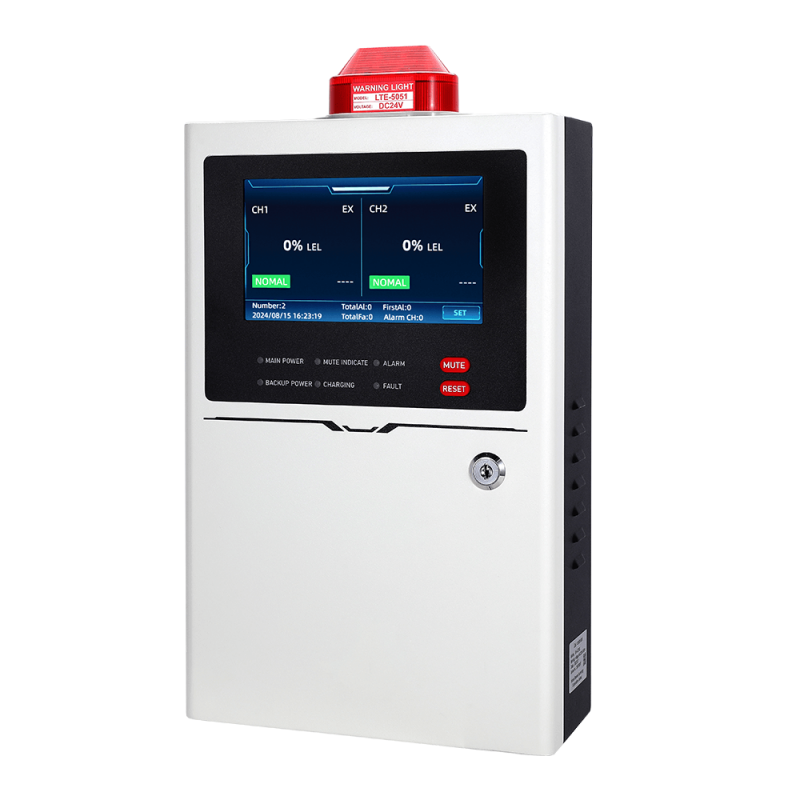

BH-KZ102 Gas Control Panel

BH-KZ102 Combustible Gas Control Panel

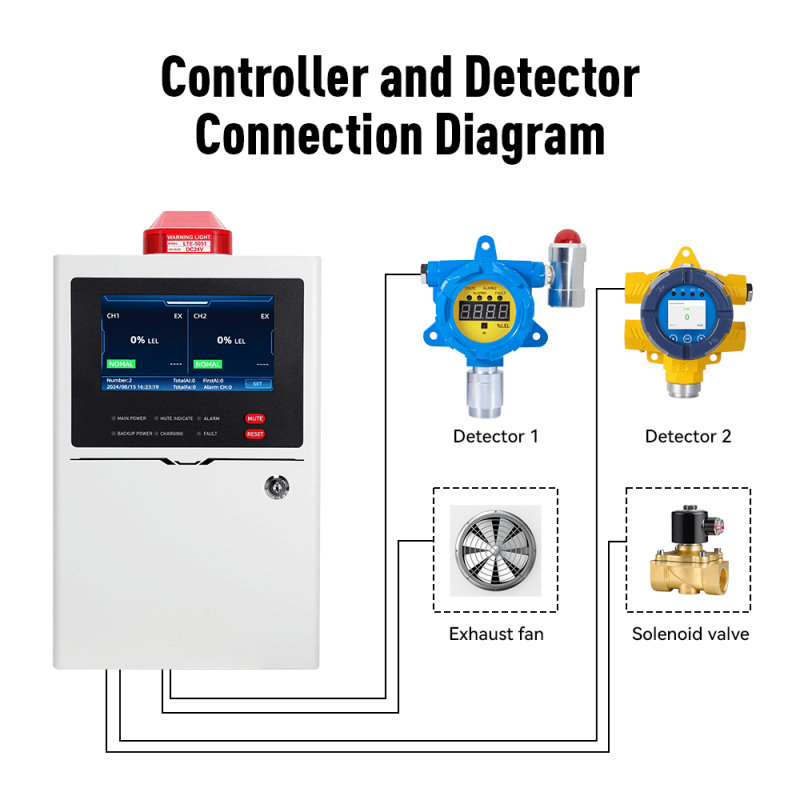

The BH-KZ102 combustible gas control panel is wall-mounted installation and can connect to 4-20mA detectors, as well as RS485 detectors powered by 24VDC. This system is designed to detect and monitor combustible gas concentrations on-site. When the gas level exceeds the preset alarm setpoints, the relays will automatically activate. This activation will trigger connected devices such as alarms and fans. Please note that the controller is not explosion-proof and must be installed in a safe area.


TAG:  BH-KZ102bosean gas control panelcombustible gas control panelgas control panel

Introduction

1、Three-channel relay output
2、Integrated sound and light, with loud sound and long transmission distance
3、Rich external ports, supporting 485/4-20
4、Large internal space,convenient for wiring use
5、Metal shell, wall mounted installation
6、Dual power supply, can still work normally in case of power outage


TAG:  BH-KZ102bosean gas control panelcombustible gas control panelgas control panel

Specifications

Target Gas:Combustible Gases
Alarm Method:Visual and Audible
Display:7 inch touch screen ; LED indicator
Input Signal:4-20mA; RS485
Working Environment:Temperature:0°C~40°C
Humidity: ≤95%RH no dew.
Communiction Protocol:RS485,Support MODBUS,Orena
Voltage Output:DC24V±6V
Power Consumption:≤25W
Relay Output:4 relay outputs
Capacitance:10A/250VAC;10A/30VDC
Weight Size:About 7kg ; 370*240*100 (L*W*H)
