BT-YC101 Handheld Laser Methane Telemeter
The BT-YC101 handheld laser methane remote sensor is an advanced detection instrument integrating laser technology, gas absorption spectroscopy, and electronic technology. It accurately measures the methane gas concentration in a target area by emitting a laser beam and receiving the reflected signal, without requiring the user to approach the detection point. This non-contact detection method not only improves measurement safety but also significantly increases detection efficiency.
TAG: BT-YC101handheld laser methane telemeterlaser methane detector
Tel: 8615639095718
Email: info@bosean.com
Introduction

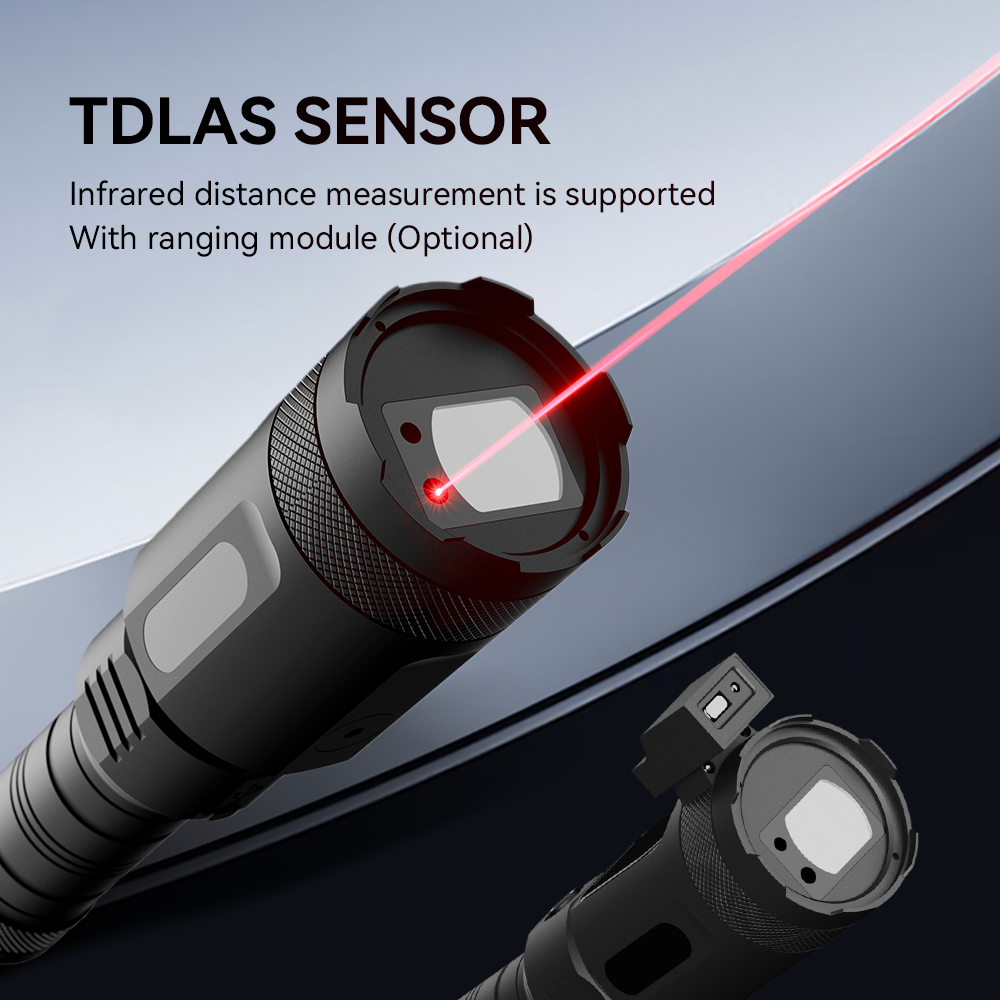

1、Employs TDLAS (Tunable Laser Absorption Spectrum) technology

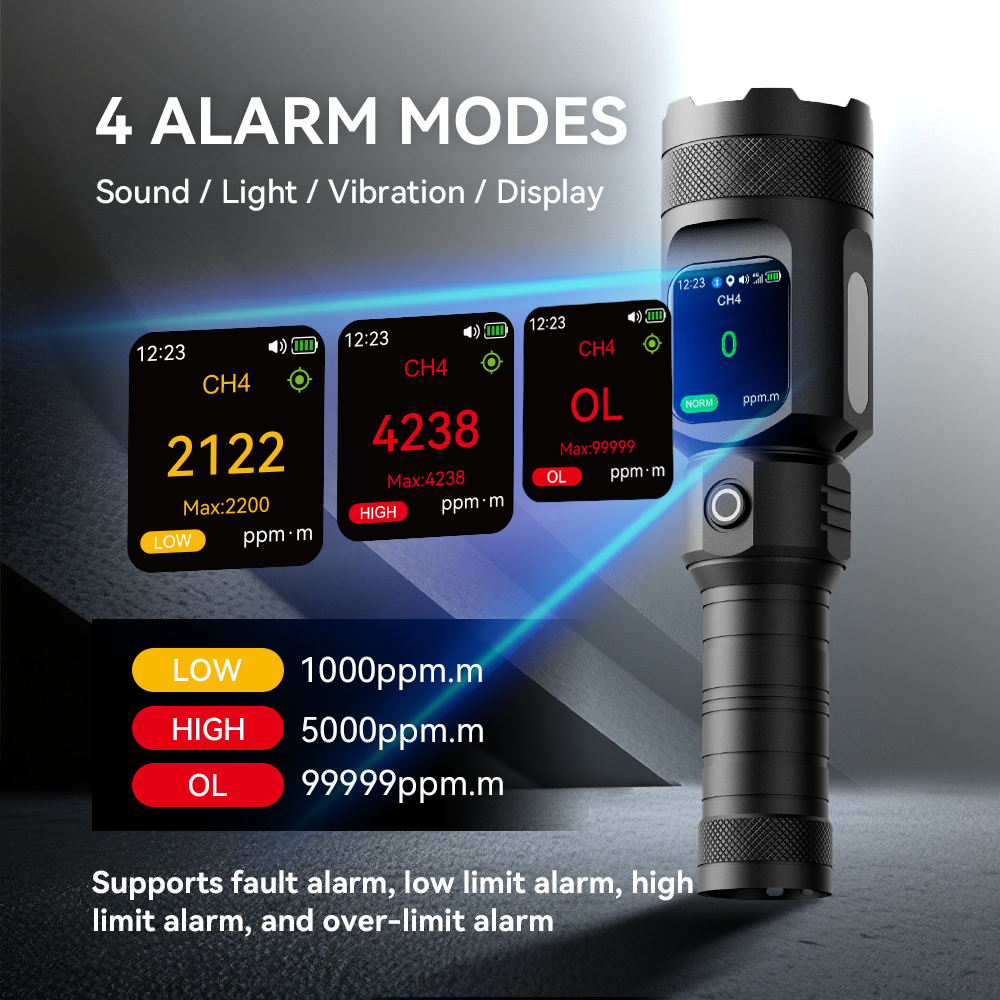

2、Features four alarm functions: sound, light, vibration, and display
3、Supports 4G network
4、Supports Bluetooth connection to mobile app
5、Supports gas unit switching
6、IP66 protection rating

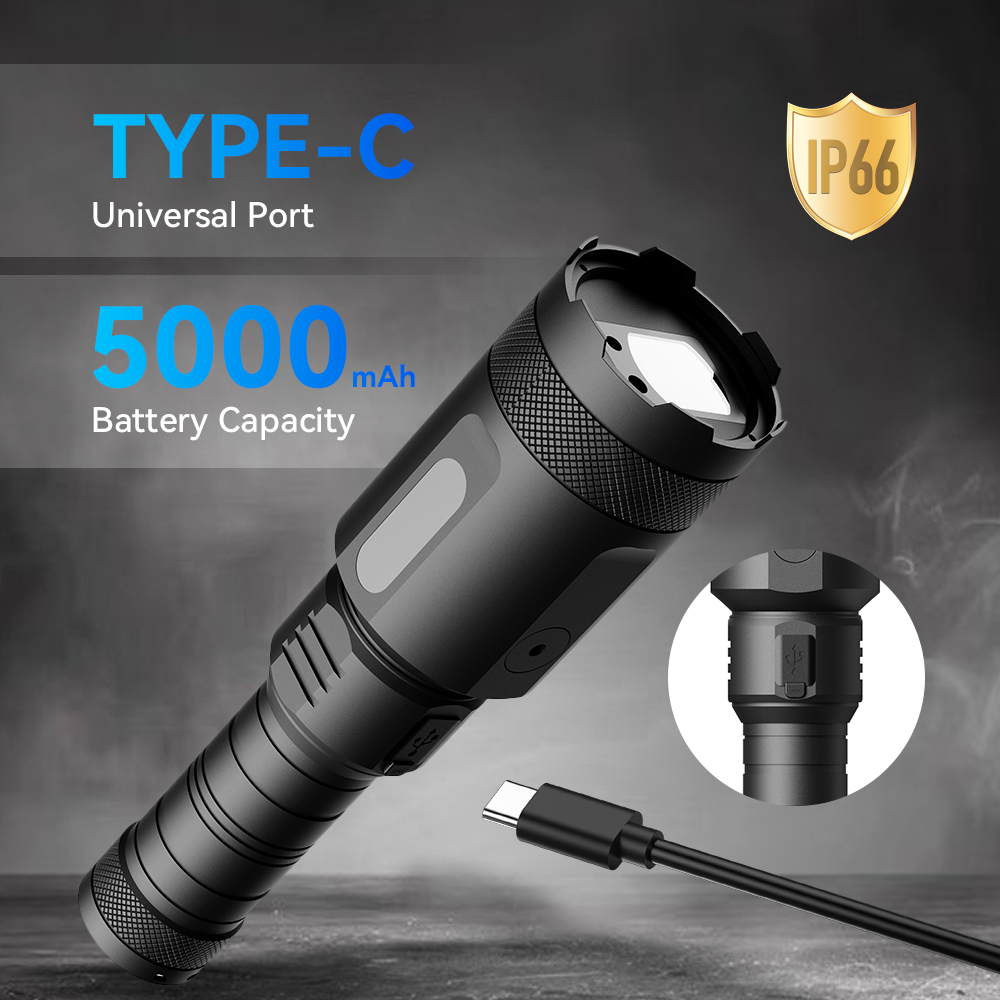

7、Can connects with PC via Type-C
8、Supports full-color touchscreen LCD display
TAG: BT-YC101handheld laser methane telemeterlaser methane detector
Specifications
Operating ambient temperature: -20℃~40°C
Response time: ≤0.1s
Battery capacity: 5000mAh
Display error: (0~1000ppm·m)±100ppm·m, (1000~9999ppm·m)±10%; Infrared ranging error <1 meter
Battery voltage: 3.7V
Maintenance-free, no periodic calibration required

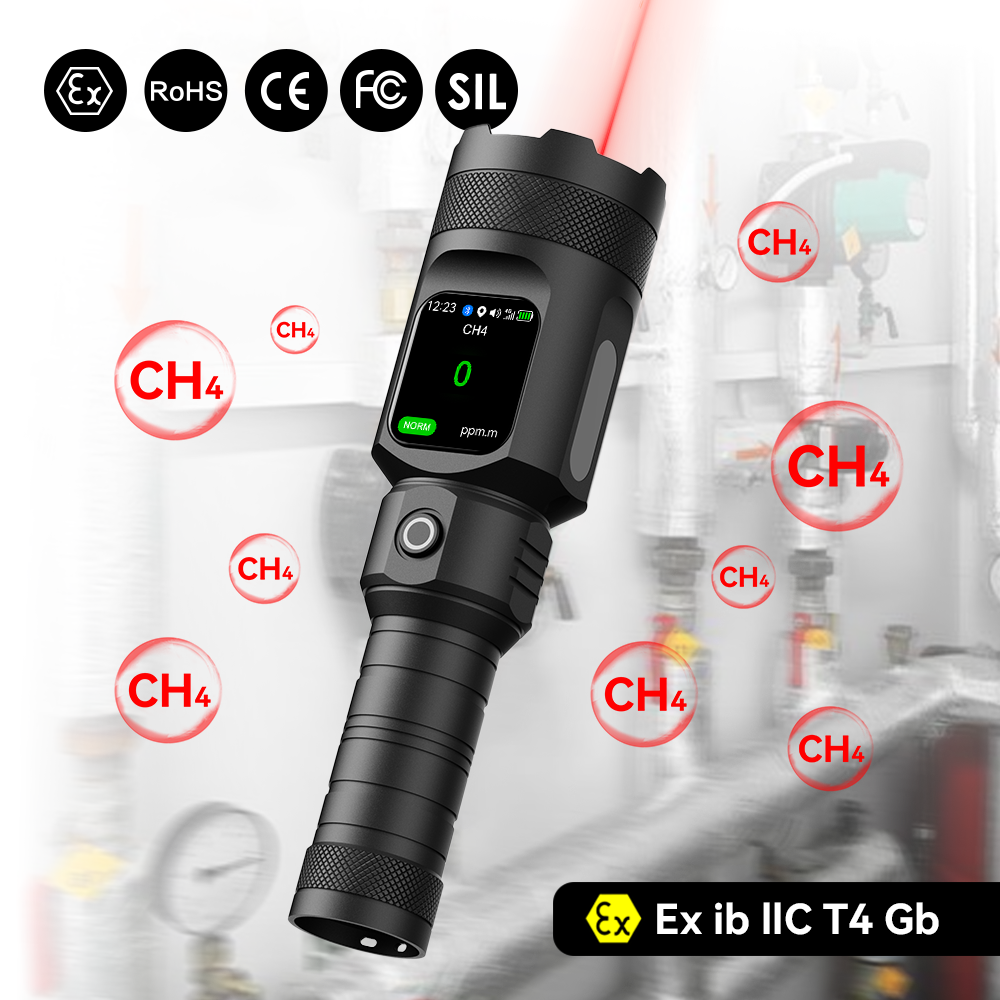

Explosion-proof mark: ExiaIICT4 Ga
Standby time: >20h, continuous measurement time >8h
Indication method: Real-time display of data and system status; light, sound, vibration indicators, alarms, faults, and undervoltage indicators
Sensor characteristics: No poisoning, no zero drift
Charging time: Approximately 6 hours
Dimensions: (206x75.3x56)mm - Version with ranging module
(205.25x56x56)mm - Standard version
Weight: Approximately 450g
