BH-H10 Domestic Gas Alarm (CH4+CO)

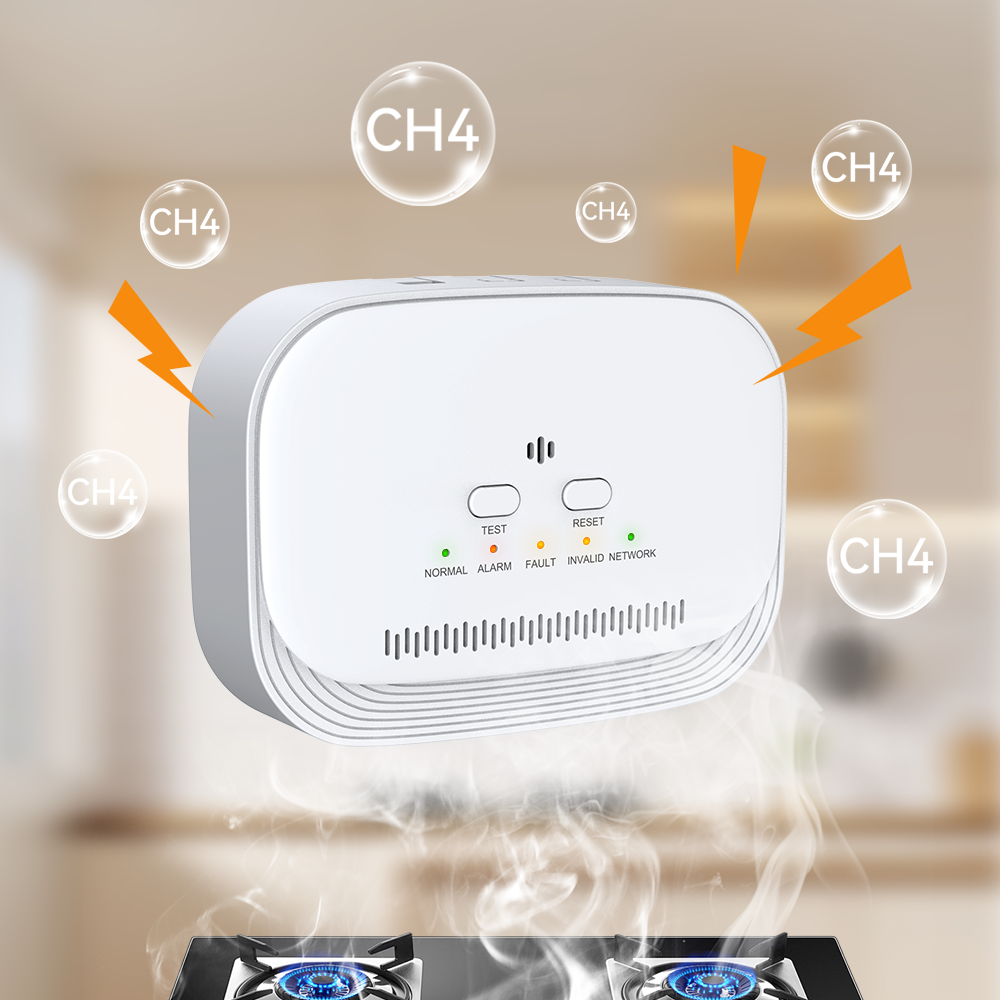

BH-H10 household gas detector is widely used in residences, hotels, apartments and other locations. It uses high-quality gas sensors and advanced electronic technology. The detector warns of methane and carbon monoxide at levels above the alarm set-point. It is your responsibility to respond properly to the audible and visual alarm.

TAG: BH-H10 domestic gas alarm gas alarm for home methane gas alarm

Tel: 8615639095718
Email: info@bosean.com

We’re here to help:Easy ways to get the answers you need
Send E-mail Get Price

Introduction

1、Strong anti-interference ability (detection is not affected by oil fumes, water vapor, etc.)；
2、Maintenance free; Accurate measurement, high sensitivity, and fast response；

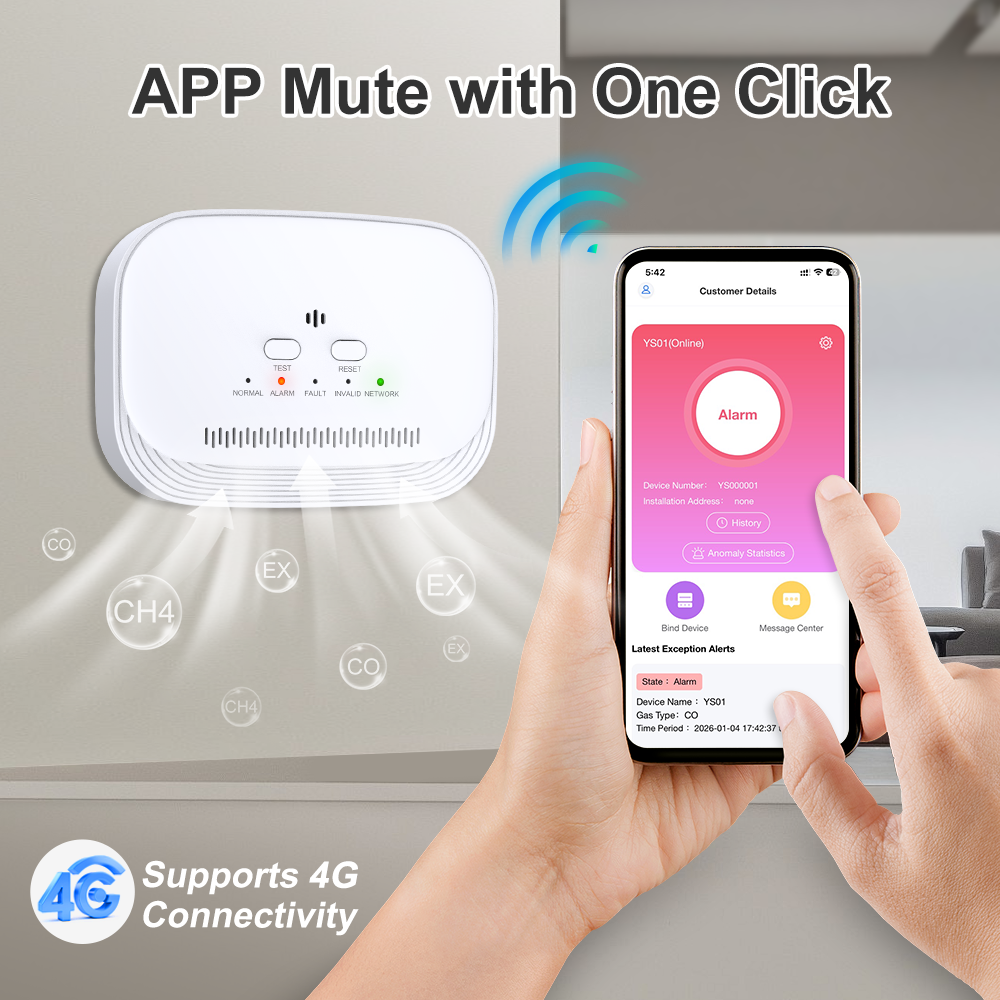

3、Support 4G networking；
4、Supports 12V active output and can drive solenoid valves；
5、Support a set of passive relay outputs.

TAG: BH-H10 domestic gas alarm gas alarm for home methane gas alarm

Specifications

Gas Monitored：CH4+CO

Sensor Life：2 years(under normal use)

Measurement Range：CH4:0-20%LEL CO:0-1000PPM

Power Supply：AC 90V-264V

Sensor type：CH4:Semiconductor CO:Electrochemical

Power Consumption：<3W

Sensor Installation method：Welding

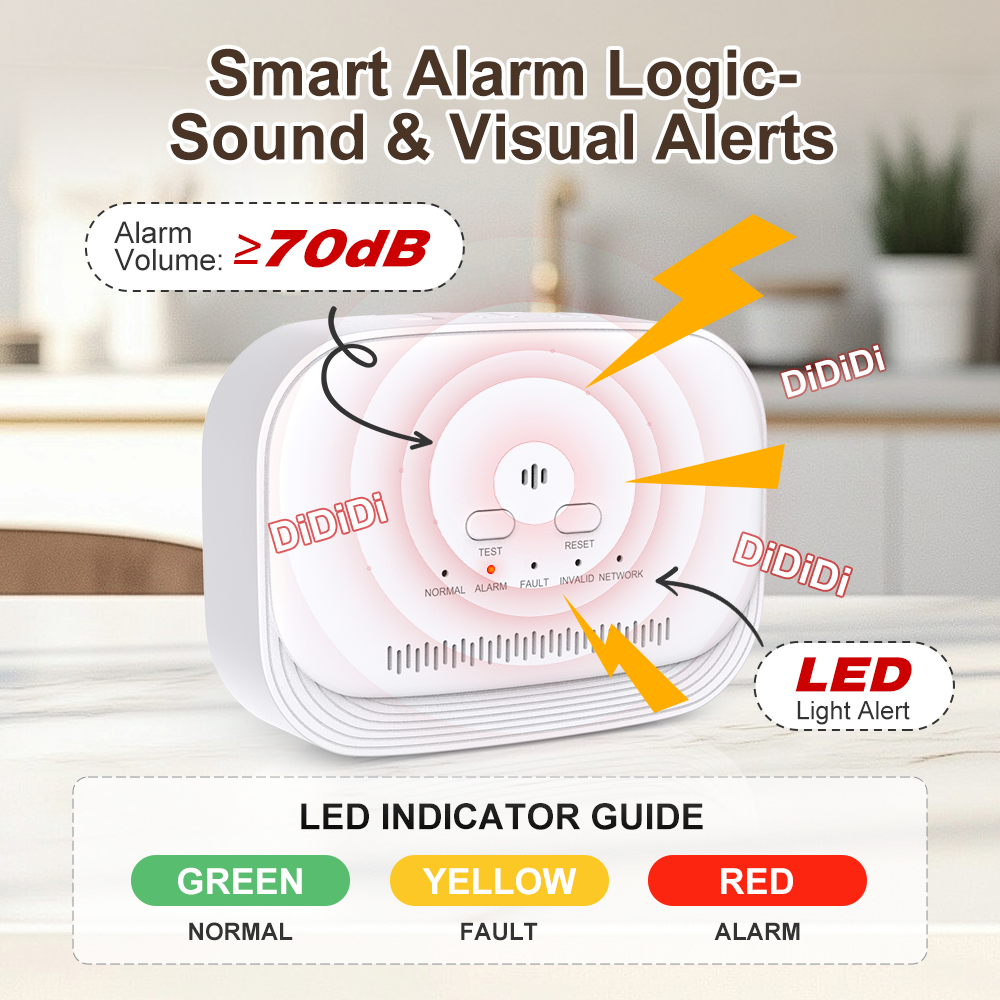

Alarm Method：Audible/Visual Alarm

Alarm threshold：10%LEL

Alarm volume：≥70dB

Working Environment：Temperature -10℃-55℃；Humidty 95%RH；Atmopheric presue 8o kPa-106 kPa For indoor use

Warm-up time:180s

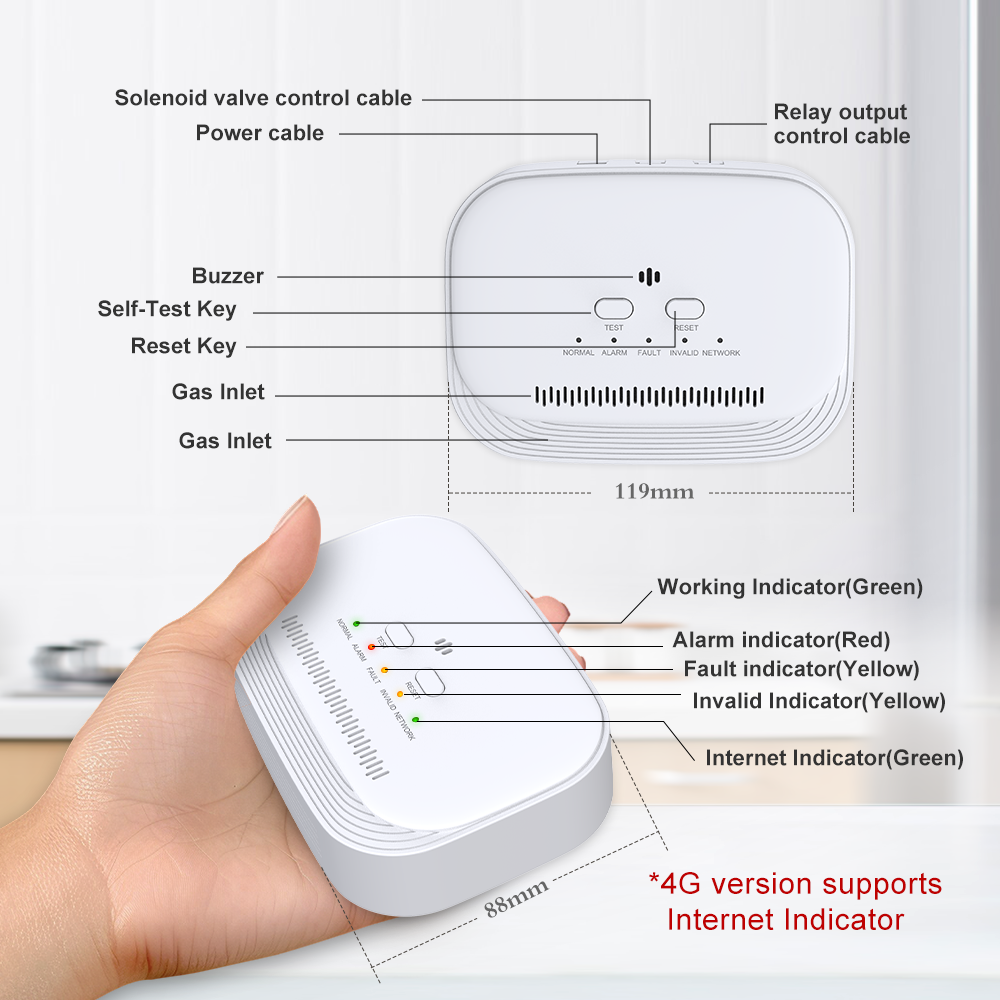

Dimensions:119x88x30mm

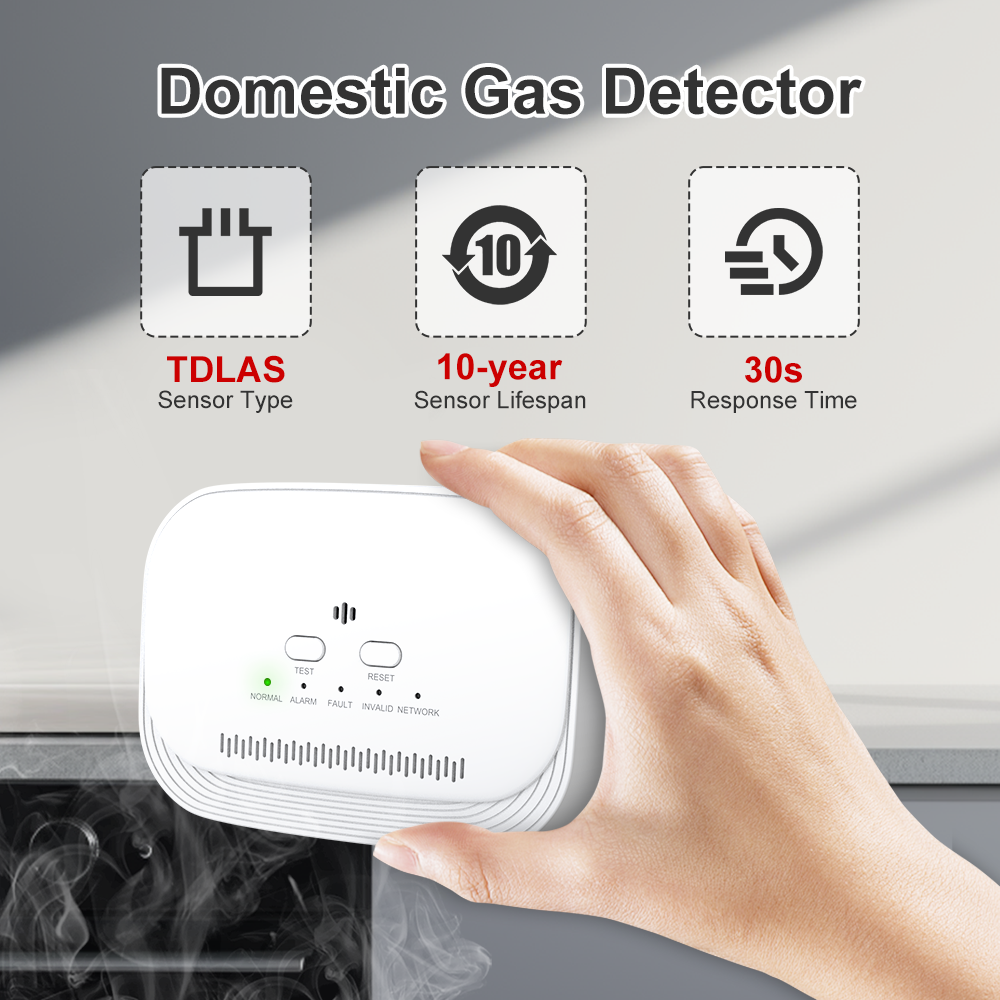

Response Time:CH4≤30s CO≤60s

TAG: BH-H10 domestic gas alarm gas alarm for home methane gas alarm
