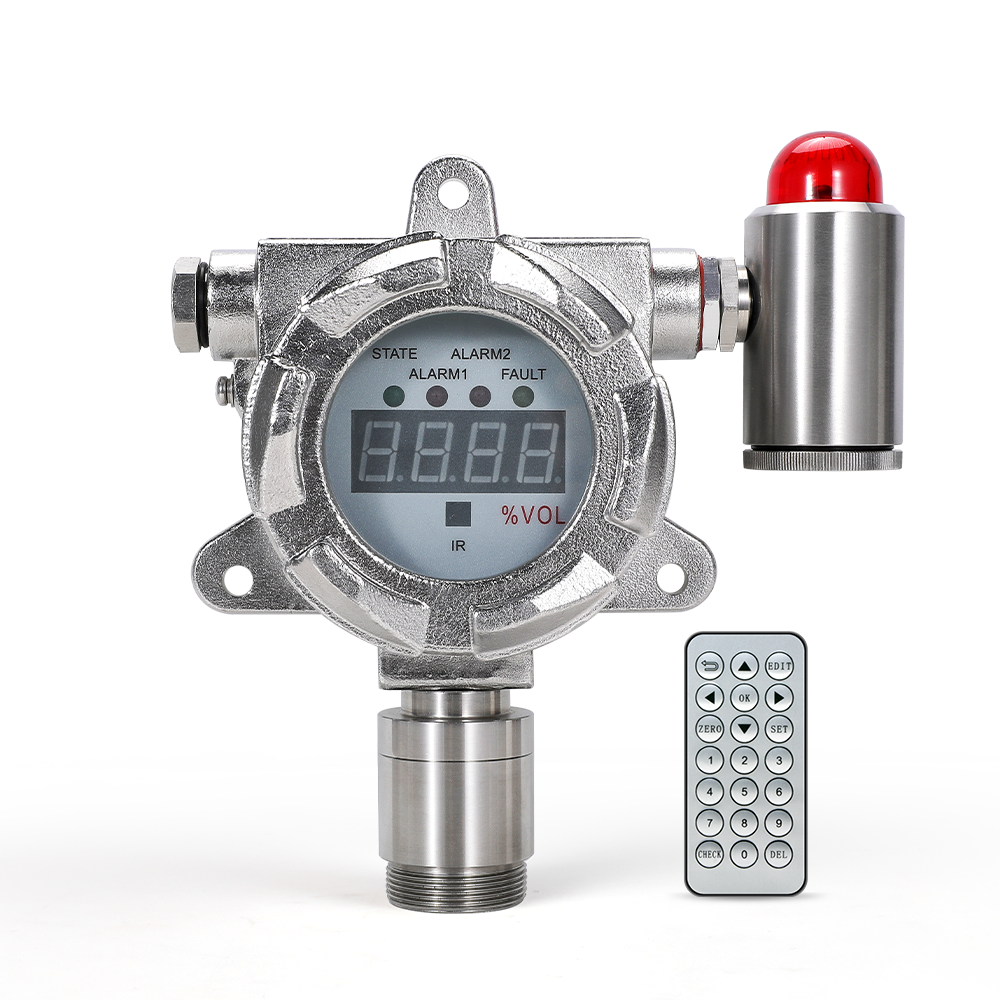

BH-60 Fixed Gas Detector (Stainless Steel)

BH-60 Fixed Gas Detector (Stainless Steel)

BH-60 fixed gas detector (stainless steel) is a new type of gas detector developed and produced in combination with the company's many years of experience in gas detection.It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.When the concentration reaches or exceeds the preset alarm value. The controller will give an audible and visual alarm, promptly remind people take safety measures to prevent the occurrence of explosions and poisoning incidents, thus ensuring the safety of life and property.We provide gas detector OEM/ODM service.


TAG:  BH-60 fixed gas detectorFixed gas detectorstainless steel fixed gas detector

Tel: 8615639095718
Email: info@bosean.com

We’re here to help:Easy ways to get the answers you need
Send E-mail Get Price

Introduction

1、Uses advanced micro-power technology sensors.
2、4-20mA standard signal output.
3、High sensitivity
4、Easy to operate and can perform on-site monitoring and alarm through simple settings.


TAG:  BH-60 fixed gas detectorFixed gas detectorstainless steel fixed gas detector

Specifications

Gas Detected：Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF, etc
Detection principle：catalytic or electrochemical or PID's or infrared principles
Sampling Method：wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution：1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision：＜5% F.S.
Response Time：≦30S
Recovery Time：≦10S
Repeatability：≦±1%
Linearity error：≦±1%
Zero shift ：≦±1% (FS / year)
Display Technology：Display high brightness LED display
Connection mode：G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working voltage：DC 24V
Working temperature：-20℃-55℃
Explosion-Proof ：Ex db IIC T6 Gb
Dimensions：190×150×95mm
Cable requirement：
4-20mA, RVVP, 3-line, ≧1.5 mm2
Modbus, RVVP, 4-line, ≧1.5 mm2
